SPECS STANDARD Hydraulic press brake

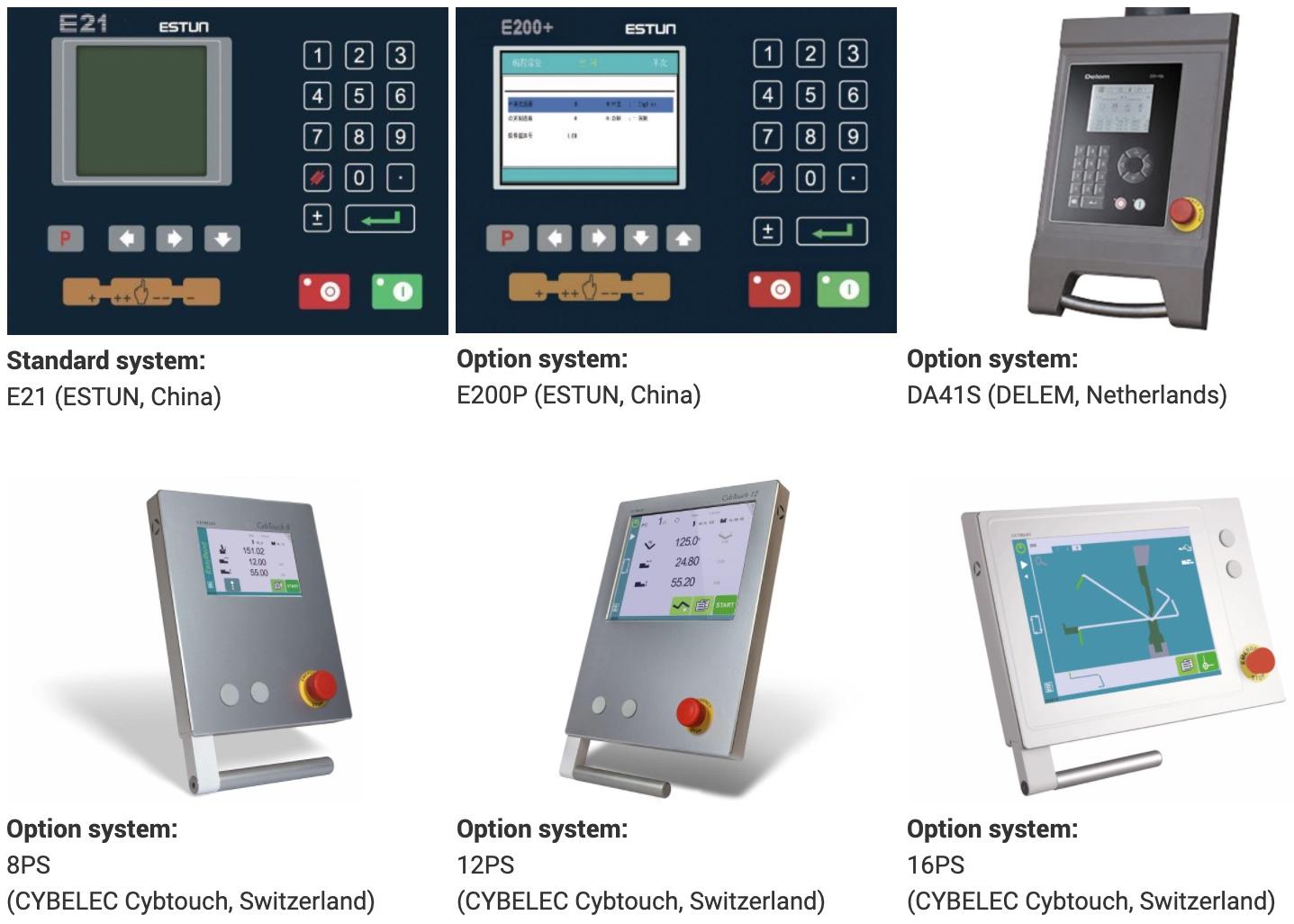

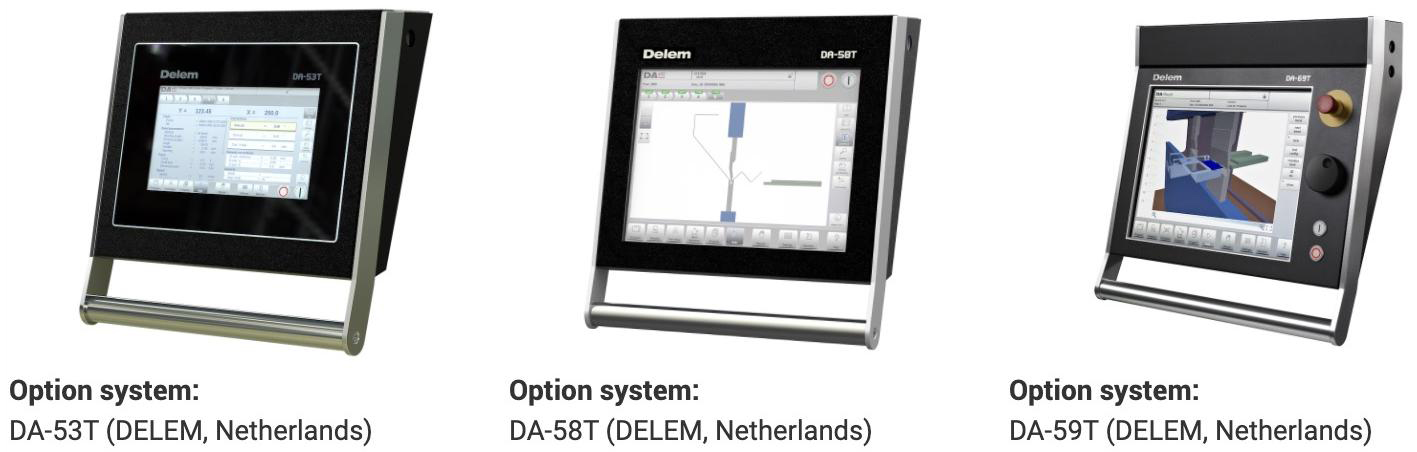

The features and benefits continue with advanced operator friendly cnc control options. An easy to use control reduces the required operator skill level. That easy to operate control, the compact DA-56s provides easy CNC programming with the Delem 2D graphical product design tool. Machine adjustment and test bends are reduced to a minimum because of the quick and easy to use bend sequence determination tool. The CNC program is generated with a one touch key stroke. You are ready to make the first part since all axes positions are automatically computed and the bend sequence has already been simulated on the screen with the machine and tools in real scale. In the production mode of the DA-56 the operator can graphically simulate the bend process of the product guiding him during the press brake operation. The basic machine control functions are Y1-Y2 and X axis, optionally a second back gauge axis can be used as R/Z or X2 axis. Also the crowning function is standard on board. Continuing on with SANCO’s philosophy of building quality into the machine, the WC67Y series press brakes start with stress relieved machine bases finished milled on 5 axis machining centers. Linear rails for all moving components of the brake as inconsequential as material support arms and back gauge fingers. Inverter controlled servo motors for all main moving components like the ram and back gauge. The quality just keeps on coming, dual Opkon linear scales monitoring the ram positioning which are mounted on a separate heavy duty “C” frame independent of the ram so as not to be affected by any possible ram deflection. SANCO offers both manual and automatic controlled crowning systems. The manual style is equipped with single point adjustment and position readout. The CNC style automatically calculates the position and setting from normal program information and sets them via the CNC. With safety in mind SANCO offers the ram-mounted AKAS-LC Safety Light Guard, located at the bending level and based on the location of the punch tip, this system helps prevent injuries. Transmitter and receiver are fixed to the ram of the machine and form a laser-optical safety light grid that follows the ram.
|
